不锈钢防爆管道油泵yg-尊龙凯时人生就博官网登录

  • 更新时间:  2024-07-02
  • 产品型号:  yg
  • 简单描述
  • yg立式防爆离心泵供输送汽油、煤油、柴油等石油产品,被输送介质温度为-20℃ ~ 120℃。广泛应用与油库,码头,船舶,化工,轻纺,环保等工矿企业。
详细介绍

yg不锈钢防爆管道油泵产品概述:
  yg管道离心油泵,是本单位科技人员联合国内水泵专家选用国内优秀水力模型,采用is型离心泵之性能参数,在一般立式泵的基础上进行巧妙组合设计而成,同时根据使用温度、介质等不同在isg型基础上派生出适用热水、高温、腐蚀性化工泵、油泵。该系列产品具有高效节能、噪音低、性能可靠等优点,符合国家机械部jb/t53058-93的标准要求,产品按iso2858标准设计制造,93年通过国家机械工业部管道泵产品统检合格。结合本公司多年生产经验而设计的第二代高效节能产品,根据使用场合介质和温度不同,过流部分可据客户要求采用不锈钢材质使该系列产品使用得到普及。
yg不锈钢防爆管道油泵特点
·结构合理
·技术先进
·效率高
·安全可靠
·输送不含固体颗粒
·应用广泛
yg不锈钢防爆管道油泵应用范围
 yg立式管道油泵,供输送汽油、煤油、柴油等石油产品,被输送介质温度为-20℃ ~ 120℃。广泛应用与油库,码头,船舶,化工,轻纺,环保等工矿企业。
yg管道油泵工作条件
1、吸入压力≤1.0mpa,或泵系统zui高工作压力≤1.6mpa,即泵吸入口压力 泵扬程≤1.6mpa,泵静压试验压力为2.5mpa,订货时请注明系统工作压力。泵系统工作压力大于1.6mpa时应在订货时另行提出,以便在制造时过流部分和联接部分采用铸钢材料。
2、环境温度<40℃,相对湿度<95%。
3、所输送介质中固体颗粒体积含量不超过单位体积的0.1%,粒度>0.2mm。
注:如使用介质为带有细小颗粒,请在订货时说明,以便厂家采用耐磨式机械密封。
yg不锈钢防爆管道油泵产品特性:
1、泵为立式结构,进出口口径相同,且位于同一中心线上,可象阀门一样安装于管路之中,外形紧凑美观、占地面积小、建筑投入低,如加上防护罩则可置于户外使用。
2、叶轮直接安在电机的加长轴上,轴向尺寸短,结构紧凑,泵与电机轴承配置合理,能有效地平衡泵运转产生的径向和轴向负荷,从而保证了泵的运行平稳,振动噪音很低。
3、轴封采用机械密封或机械密封组合,采用进口钛合金密封环、中型耐高温机械密封和采用硬质合金材质、耐磨密封,能有效地增长机械密封的使用寿命。
4、安装检修方便,无需拆动管路系统,只要卸下泵联体座螺母即可抽出全部转子部件。
5、可根据使用要求即流量和扬程的需要采用泵的串、并联运行方式。
6、可根据管路布置的要求采用泵的竖式和横式安装。

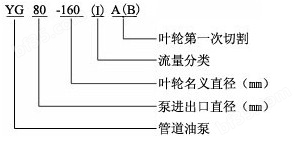

yg型不锈钢防爆管道油泵型号意义:


yg型不锈钢防爆管道油泵性能参数表:

型 号流 量q扬程
m
效率
%
转速
r/min
电机功率
kw
允许汽蚀余量
m
m3/hl/s
yg15-801.50.4283428000.182.3
yg20-1102.50.69153428000.372.3
yg20-1602.50.69322529000.752.3
yg25-11041.11154229000.552.3
yg25-12541.11203629000.752.3
yg25-125a3.61.0163529000.552.3
yg25-16041.11323229001.52.3
yg25-160a3.71.03283129001.12.3
yg32-1004.512.512.54429000.552.3
yg32-100(i)6.31.7512.55429000.752.3
yg32-12551.39204429000.752.3
yg32-125a4.51.25164329000.552.3
yg32-1606.55324429001.52.3
yg32-160a41.1253429001.12.0
yg32-160(i)6.31.75324029002.22.0
yg32-2004.512.55032290032.0
yg32-200(i)6.31.755033290042.0
yg32-200a41.11444029002.22.0
yg40-1006.31.7512.55429000.552.3
yg40100a5.61.56105229000.372.3
yg40-1256.31.75204629001.12.3
yg40-125a5.61.56164529000.752.3
yg40-1606.31.75324029002.22.3
yg40-160a5.91.64283929001.52.3
yg40-160b5.51.53243829001.12.3
yg40-2006.31.755033290042.3
yg40-200a5.91.644431290032.3
yg40-200b5.31.47362929002.22.3
yg40-2506.31.75802829007.52.3
yg40-250a5.91.64702829005.52.3
yg40-250b5.51.536027290042.3
yg40-100(i)12.53.4712.56229001.12.3
yg40-100(i)a113.05106029000.752.3
yg40-125(i)12.53.47205829001.52.3
yg40-125(i)a113.05165729001.12.3
yg40-160(i)12.53.473252290032.3
yg40-160(i)a11.73.25285129002.22.3
yg40-160(i)b10.42.89225029001.52.3
yg40-200(i)12.53.47504629005.52.3
yg40-200(i)a11.73.254445290042.3
yg40-200(i)b10.62.943644290032.3
yg40-250(i)12.53.4780382900112.3
yg40-250(i)a11.63.22703829007.52.3
yg40-250(i)b10.83.0603729007.52.3
yg40-250(i)c10.02.78523629005.52.3
yg50-10012.53.4712.56229001.12.3
yg50-100a113.05106029000.752.3
yg50-12512.53.47205829001.52.3
型 号流 量q扬程
m
效率
%
转速
r/min
电机功率
kw
允许汽蚀余量
m
m3/hl/s
yg50-125a113.05165729001.12.3
yg50-16012.53.473252290032.3
yg50-160a11.73.25285129002.22.3
yg50-160b10.42.89225029001.52.3
yg50-20012.53.47504629005.52.3
yg50-200a11.73.254445290042.3
yg50-200b10.62.943644290032.3
yg50-25012.53.4780382900112.3
yg50-250a11.63.22703829007.52.3
yg50-250b10.83.0603729007.52.3
yg50-250c10.02.78523629005.52.3
yg50-100(i)256.9412.56929001.52.5
yg50-100(i)a22.36.19106729001.12.5
yg50-125(i)256.942068290032.5
yg50-125(i)a22.36.19166629002.22.5
yg50-160(i)256.943263290042.5
yg50-160(i)a23.46.52862290042.5
yg50-160(i)b21.66.02458290032.5
yg50-200(i)256.94505829007.52.5
yg50-200(i)a23.56.53445729007.52.5
yg50-200(i)b21.86.06385529005.52.5
yg50-250(i)256.9480502900152.5
yg50-250(i)a23.46.570502900112.5
yg50-250(i)b21.66.060492900112.5
yg50-315(i)256.94125402900302.5
yg50-315(i)a23.76.58113402900222.5
yg50-315(i)b22.56.2510139290018.52.5
yg50-315(i)c20.65.7285382900152.5
yg65-100256.9412.56929001.52.5
yg65-100a22.36.19106729001.12.5
yg65-125256.942068290032.5
yg65-125a22.36.19166629002.22.5
yg65-160256.943263290042.5
yg65-160a23.46.52862290042.5
yg65-160b21.66.02458290032.5
yg65-200256.94505829007.52.5
yg65-200a23.56.53445729007.52.5
yg65-200b21.86.06385529005.52.5
yg65-250256.9480502900152.5
yg65-250a23.46.570502900112.5
yg65-250b21.66.060492900112.5
yg65-315256.94125402900302.5
yg65-315a23.76.58113402900222.5
yg65-315b22.56.2510139290018.52.5
yg65-315c20.65.7285382900152.5
yg65-100(i)5013.912.573290033.0
yg65-100(i)a44.712.4107229002.23.0
yg65-125(i)5013.92072.529005.53.0
型 号流 量q扬程
m
效率
%
转速
r/min
电机功率
kw
允许汽蚀余量
m
m3/hl/s
yg65-125(i)a4512.51671290043.0
yg65-160(i)5013.9327129007.53.0
yg65-160(i)a46.713.0287029007.53.0
yg65-160(i)b43.312.0246929005.53.0
yg65-200(i)5013.950672900153.0
yg65-200(i)a4713.144662900113.0
yg65-200(i)b43.512.1386529007.53.0
yg65-250(i)5013.980592900223.0
yg65-250(i)a46.713.07059290018.53.0
yg65-250(i)b43.312.060582900153.0
yg65-315(i)5013.9125542900373.0
yg65-315(i)a46.512.9110542900303.0
yg65-315(i)b44.512.4100532900303.0
yg65-315(i)c4111.485512900223.0
yg80-1005013.912.573290033.0
yg80-100a44.712.5107229002.23.0
yg80-1255013.92072.529005.53.0
yg80-125a4512.51671290043.0
yg80-1605013.9327129007.53.0
yg80-160a46.713.0287029007.53.0
yg80-160b43.312.0246929005.53.0
yg80-2005013.950672900153.0
yg80-200a4713.144662900113.0
yg80-200b43.512.1386529007.53.0
yg80-2505013.980592900223.0
yg80-250a46.713.07059290018.53.0
yg80-250b43.312.060582900153.0
yg80-3155013.9125542900373.0
yg80-315a46.512.9110542900303.0
yg80-315b44.512.4100532900303.0
yg80-315c4111.485512900223.0
yg80-3505013.9150662900553.0
yg80-350a44.512.4142652900453.0
yg80-350b4111.4135622900373.0
yg80-100(i)10027.812.57629005.54.5
yg80-100(i)a8924.71074290044.5
yg80-125(i)10027.820762900114.5
yg80-125(i)a8924.7167429007.54.5
yg80-160(i)10027.832762900154.5
yg80-160(i)a93.526.028742900114.5
yg80-160(i)b86.624.124722900114.5
yg80-200(i)10027.85074290024.5
yg80-200(i)a93.526.04473290018.54.5
yg80-200(i)b8724.238712900154.5
yg80-250(i)10027.880692900374.5
yg80-250(i)a93.526.070682900304.5
yg80-250(i)b8724.260662900304.5
yg80-315(i)10027.8125662900754.5
型 号流 量q扬程
m
效率
%
转速
r/min
电机功率
kw
允许汽蚀余量
m
m3/hl/s
yg80-315(i)a9526.4113662900554.0
yg80-315(i)b9025101652900454.0
yg80-315(i)c8222.885632900374.0
yg100-10010027.812.57629005.54.5
yg100-100a89471074290044.5
yg100-12510027.820762900114.5
yg100-125a8924.7167429007.54.5
yg100-16010027.832762900154.5
yg100-160a93.526.028742900114.5
yg100-160b86.624.124722900114.5
yg100-20010027.850742900224.0
yg100-200a93.526.04473290018.54.0
yg100-200b8724.238712900154.0
yg100-25010027.880692900374.0
yg100-250a93.526.070682900304.0
yg100-250b8724.260662900304.0
yg100-31510027.8125662900754.0
yg100-315a9526.4113662900554.0
yg100-315b9025101652900454.0
yg100-315c8222.885632900374.0
yg100-100(i)16044.412.5732900114.5
yg100-125(i)16044.420742900154.5
yg100-125(i)a1403917722900114.5
yg100-160(i)16044.432322900225.6
yg100-160(i)a140392828290018.55.0
yg100-200(i)10044.450502900375.2
yg100-200(i)a1403945452900304.5
yg100-200(i)b10027.840402900224.5
yg100-250(i)16044.480802900554.8
yg100-250(i)a3972722900454.5
yg100-250(i)b10027.865652900374.5
yg100-35010027.81501502900904.0
yg100-350a8724.21421422900754.0
yg100-350b8222.81351352900554.0
yg125-10016044.412.512.52900114.0
yg125-100a14339.7101029007.54.0
yg125-12516044.420202900154.0
yg125-125a14339.716162900114.0
yg125-16016044.432322900224.0
yg125-160a15041.72828290018.54.0
yg125-160b13838.324242900154.0
yg125-20016044.450502900375.5
yg125-200a15041.744442900305.5
yg125-200b13838.337.537.52900225.5
yg125-25016044.480802900555.0
yg125-250a15041.770702900455.5
