卧式不锈钢化工离心泵iswh型-尊龙凯时人生就博官网登录

  • 更新时间:  2024-07-02
  • 产品型号:  iswh型
  • 简单描述
  • 卧式不锈钢化工离心泵采用的水力模型,根据is型离心泵之性能参数和立式泵的*结构组合设计,并严格按照iso2858进行设计制造,该产品轴封选用硬质合金机械密封装置,具有高效节能、性能可靠、安装使用方便等特点。适用于石油、化工、冶金、电力、造纸、食品制药和合成纤维等部门。
详细介绍

一、卧式不锈钢化工离心泵概述:
iswh卧式单级单吸化工泵,是在isw基础上派声生出适用耐腐蚀性化工泵。该系列泵性能优、可靠性高、寿命长、结构合理、 外形美观,具有行业水平。
二、卧式不锈钢化工离心泵用途:
iswh卧式单级单吸化工泵,供输送不含固体颗粒,具有腐蚀性,粘度类似于水的液体,适用于石油、化工、冶金、电力、造纸、食品制药和合成纤维等部门,使用温度为-20℃~ 105℃。

isw卧式清水泵,供输送清水及物理化学性质类似于清水的其它液体之用,适用于工业和城市给排
水、高层建筑增压送水、园林喷灌、消防增压、远距离输送、暖通制冷循环、浴室等冷暖水循环增压
及设备配套,使用温度t≤80℃。
iswr卧式热水泵广泛适用于:冶金、化工、纺织、造纸以及宾馆饭店等锅炉热水增压循环输送及
城市采暖系统,iswr型使用温度t≤120℃。

iswb卧式管道油泵,供输送汽油、煤油、柴油等油类产品或易燃、易爆液体,被输送介质温度为
-20~ 120℃。
三、卧式不锈钢化工离心泵工作条件:
1、吸入压力≤1.6mpa,或泵系统zui高工作压力 ≤1.6mpa,即泵吸入口压力 泵扬程≤1.6mpa、泵静压试验压力为2.5mpa,订货时请注明系统工作压力。泵系统工作压力大于1.6mpa时应 在订货时另行提出,以便在制造时泵的过流部分和联接部分采用铸钢材料。
2、环境温度<40℃,相对湿度<95%。
3、所输送介质中固体颗粒体积含量不超过单位体积的0.1%,粒度<0.2mm。
注:如使用介质为带有细小颗粒,请在订货时注明,以便厂家采用耐磨式机械密封。
四、产品特点:
运行平稳:泵轴的同心度及叶轮优异的动静平衡,保证平稳运行,*振动。
滴水不漏:不同材质的硬质合金密封,保证了不同介质输送均无泄漏。
噪音低:两个低噪音轴承支撑下的水泵,运转平稳,除电机微弱声响,基本无噪音。
故障率低:结构简单合理,关键部分采用*品质;配套,整机*工作时间大大提高。
维修方便:更换密封、轴承,简易方便。
占地更省:出口可向左、向右、向上三个方向,便于管道布置安装,节省空间。

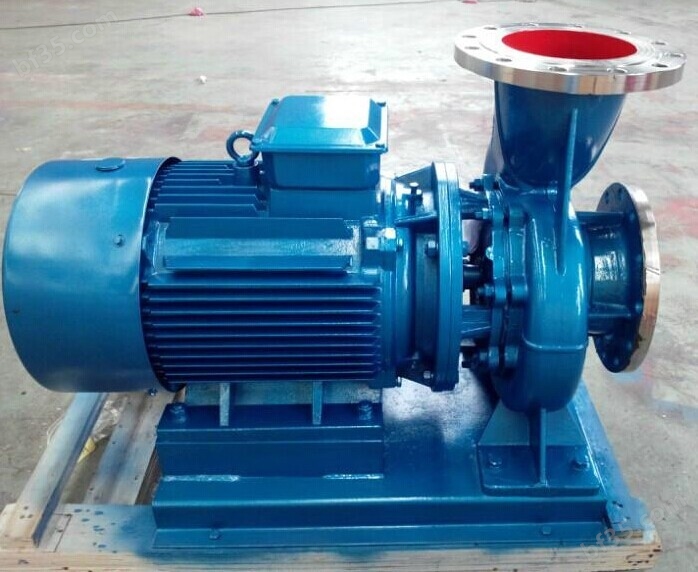

不锈钢化工离心泵实物图片


五、卧式不锈钢化工离心泵选型参数:

型  号流 量q扬程
m
效率
%
转速
r/min
电机功率
kw
允许汽蚀余量
m
m3/hl/s
15-801.50.428 3428000.182.3
20-1102.50.69153428000.372.3
20-1602.50.69322529000.752.3
25-11041.11154229000.552.3
25-12541.11203629000.752.3
25-125a3.61.0163529000.552.3
25-16041.11323229001.52.3
25-160a3.71.03283129001.12.3
32-1004.512.512.54429000.552.3
32-100(i)6.31.7512.55429000.752.3
32-12551.39204429000.752.3
32-125a4.51.25164329000.552.3
32-1606.55324429001.52.3
32-160a41.1253429001.12.0
32-160(i)6.31.75324029002.22.0
32-2004.512.55032290032.0
32-200(i)6.31.755033290042.0
32-200a41.11444029002.22.0
40-1006.31.7512.55429000.552.3
40100a5.61.56105229000.372.3
40-1256.31.75204629001.12.3
40-125a5.61.56164529000.752.3
40-1606.31.75324029002.22.3
40-160a5.91.64283929001.52.3
40-160b5.51.53243829001.12.3
40-2006.31.755033290042.3
40-200a5.91.644431290032.3
40-200b5.31.47362929002.22.3
40-2506.31.75802829007.52.3
40-250a5.91.64702829005.52.3
40-250b5.51.536027290042.3
40-100(i)12.53.4712.56229001.12.3
40-100(i)a113.05106029000.752.3
40-125(i)12.53.47205829001.52.3
40-125(i)a113.05165729001.12.3
40-160(i)12.53.473252290032.3
40-160(i)a11.73.25285129002.22.3
40-160(i)b10.42.89225029001.52.3
40-200(i)12.53.47504629005.52.3
40-200(i)a11.73.254445290042.3
40-200(i)b10.62.943644290032.3
40-250(i)12.53.4780382900112.3
40-250(i)a11.63.22703829007.52.3
40-250(i)b10.83.0603729007.52.3
40-250(i)c10.02.78523629005.52.3
50-10012.53.4712.56229001.12.3
50-100a113.05106029000.752.3
50-12512.53.47205829001.52.3
型  号流 量q扬程
m
效率
%
转速
r/min
电机功率
kw
允许汽蚀余量
m
m3/hl/s
50-125a113.05165729001.12.3
50-16012.53.473252290032.3
50-160a11.73.25285129002.22.3
50-160b10.42.89225029001.52.3
50-20012.53.47504629005.52.3
50-200a11.73.254445290042.3
50-200b10.62.943644290032.3
50-25012.53.4780382900112.3
50-250a11.63.22703829007.52.3
50-250b10.83.0603729007.52.3
50-250c10.02.78523629005.52.3
50-100(i)256.9412.56929001.52.5
50-100(i)a22.36.19106729001.12.5
50-125(i)256.942068290032.5
50-125(i)a22.36.19166629002.22.5
50-160(i)256.943263290042.5
50-160(i)a23.46.52862290042.5
50-160(i)b21.66.02458290032.5
50-200(i)256.94505829007.52.5
50-200(i)a23.56.53445729007.52.5
50-200(i)b21.86.06385529005.52.5
50-250(i)256.9480502900152.5
50-250(i)a23.46.570502900112.5
50-250(i)b21.66.060492900112.5
50-315(i)256.94125402900302.5
50-315(i)a23.76.58113402900222.5
50-315(i)b22.56.2510139290018.52.5
50-315(i)c20.65.7285382900152.5
65-100256.9412.56929001.52.5
65-100a22.36.19106729001.12.5
65-125256.942068290032.5
65-125a22.36.19166629002.22.5
65-160256.943263290042.5
65-160a23.46.52862290042.5
65-160b21.66.02458290032.5
65-200256.94505829007.52.5
65-200a23.56.53445729007.52.5
65-200b21.86.06385529005.52.5
65-250256.9480502900152.5
65-250a23.46.570502900112.5
65-250b21.66.060492900112.5
65-315256.94125402900302.5
65-315a23.76.58113402900222.5
65-315b22.56.2510139290018.52.5
65-315c20.6 5.7285382900152.5
65-100(i)5013.912.573290033.0
65-100(i)a44.712.4107229002.23.0
65-125(i)5013.92072.529005.53.0
型  号流 量q扬程
m
效率
%
转速
r/min
电机功率
kw
允许汽蚀余量
m
m3/hl/s
65-125(i)a4512.51671290043.0
65-160(i)5013.9327129007.53.0
65-160(i)a46.713.0287029007.53.0
65-160(i)b43.312.0246929005.53.0
65-200(i)5013.950672900153.0
65-200(i)a4713.144662900113.0
65-200(i)b43.512.1386529007.53.0
65-250(i)5013.980592900223.0
65-250(i)a46.713.07059290018.53.0
65-250(i)b43.312.060582900153.0
65-315(i)5013.9125542900373.0
65-315(i)a46.512.9110542900303.0
65-315(i)b44.512.4100532900303.0
65-315(i)c4111.485512900223.0
80-1005013.912.573290033.0
80-100a44.712.5107229002.23.0
80-1255013.92072.529005.53.0
80-125a4512.51671290043.0
80-1605013.9327129007.53.0
80-160a46.713.0287029007.53.0
80-160b43.312.0246929005.53.0
80-2005013.950672900153.0
80-200a4713.144662900113.0
80-200b43.512.1386529007.53.0
80-2505013.980592900223.0
80-250a46.713.07059290018.53.0
80-250b43.312.060582900153.0
80-3155013.9125542900373.0
80-315a46.512.9110542900303.0
80-315b44.512.4100532900303.0
80-315c4111.485512900223.0
80-3505013.9150662900553.0
80-350a44.512.4142652900453.0
80-350b4111.4135622900373.0
80-100(i)10027.812.57629005.54.5
80-100(i)a8924.71074290044.5
80-125(i)10027.820762900114.5
80-125(i)a8924.7167429007.54.5
80-160(i)10027.832762900154.5
80-160(i)a93.526.028742900114.5
80-160(i)b86.624.124722900114.5
80-200(i)10027.85074290024.5
80-200(i)a93.526.04473290018.54.5
80-200(i)b8724.238712900154.5
80-250(i)10027.880692900374.5
80-250(i)a93.526.070682900304.5
80-250(i)b8724.260662900304.5
80-315(i)10027.8125662900754.5
型  号流 量q扬程
m
效率
%
转速
r/min
电机功率
kw
允许汽蚀余量
m
m3/hl/s
80-315(i)a9526.4113662900554.0
80-315(i)b9025101652900454.0
80-315(i)c8222.885632900374.0
100-10010027.812.57629005.54.5
100-100a89471074290044.5
100-12510027.820762900114.5
100-125a8924.7167429007.54.5
100-16010027.832762900154.5
100-160a93.526.028742900114.5
100-160b86.624.124722900114.5
100-20010027.850742900224.0
100-200a93.526.04473290018.54.0
100-200b8724.238712900154.0
100-25010027.880692900374.0
100-250a93.526.070682900304.0
100-250b8724.260662900304.0
100-31510027.8125662900754.0
100-315a9526.4113662900554.0
100-315b9025101652900454.0
100-315c8222.885632900374.0
100-100(i)16044.412.5732900114.5
100-125(i)16044.420742900154.5
100-125(i)a1403917722900114.5
100-160(i)16044.432322900225.6
100-160(i)a140392828290018.55.0
100-200(i)10044.450502900375.2
100-200(i)a1403945452900304.5
100-200(i)b10027.840402900224.5
100-250(i)16044.480802900554.8
100-250(i)a1403972722900454.5
100-250(i)b10027.865652900374.5
100-35010027.81501502900904.0
100-350a8724.21421422900754.0
100-350b8222.81351352900554.0
125-10016044.412.512.52900114.0
125-100a14339.7101029007.54.0
125-12516044.420202900154.0
125-125a14339.716162900114.0
125-16016044.432322900224.0
125-160a15041.72828290018.54.0
125-160b13838.324242900154.0
125-20016044.450502900375.5
125-200a15041.744442900305.5
125-200b13838.337.537.52900225.5
125-25016044.480802900555.0
125-250a15041.770702900455.5

注:部分参数,需要更详细参数表可以与技术部。

六、卧式不锈钢化工离心泵安装说明:

1、安装前应检查机组紧固件有无松动现象,泵体流道有无异物堵塞,以免水泵运行时损坏叶轮和泵体。
2、安装时管道重量不应加在水泵上,以免使泵变形。
3、安装时必须拧紧地脚螺栓,以免起动时振动对泵性能的影响。
4、为了维修方便和使用安全,在泵的进出口管路上各安装一只调节阀及在泵出口附近安装一只压力表,以保证在额定扬程和流量范围内运行,确保泵正常运行,增长水泵的使用寿命。
5、安装后拨动泵轴,叶轮应无磨擦声或卡死现象,否则应将泵拆开检查原因。
6、泵分硬性联接安装和柔性联接安装两种(见联接方式)。
