ihg立式不锈钢离心化工泵-尊龙凯时人生就博官网登录

  • 更新时间:  2024-07-03
  • 产品型号:
  • 简单描述
  • ihg立式不锈钢离心化工泵用途
    ihg型立式单级单吸化工离心泵,供输送不含固体颗粒,具有腐蚀性,粘度类似于水的液体,该离心泵适用于石油、化工、冶金、电力、造纸、食口制药等部门,使用温度为-20℃~ 105℃。
详细介绍



故障率低:结构简单合理,关键部分采用*品质;配套,整机*工作时间大大提升。


ihg立式不锈钢离心化工泵工作条件

1、吸入压力≤1.6mpa,或泵系统zui高工作压力 ≤1.6mpa,即泵吸入口压力 泵扬程≤1.6mpa、泵静压试验压力为2.5mpa,订货时请注明系统工作压力。泵系统工作压力大于1.6mpa时应 在订货时另行提出,以便在制造时泵的过流部分和联接部分采用铸钢材料。
2、环境温度<40℃,相对湿度<95%。
3、所输送介质中固体颗粒体积含量不超过单位体积的0.1%,粒度<0.2mm。
注:如使用介质为带有细小颗粒,请在订货时注明,以便厂家采用耐磨式机械密封。

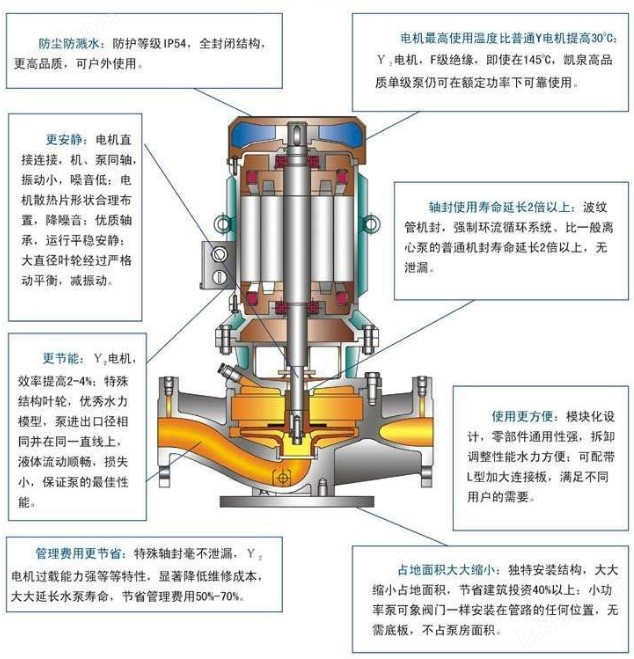

ihg立式不锈钢离心化工泵结构图



ihg立式不锈钢离心泵性能参数

型号流量
(m3/h)
扬程
(m)
电机功率 (kw)转速
(r/min)
效率
(%)
汽蚀余量
(m)
15-801.580.182900342.3
20-1102.5150.372900342.3
20-1602.5321.12900252.3
25-1104150.552900422.3
25-1254200.752900362.3
25-125a3.6160.552900352.3
25-1604321.52900322.3
25-160a3.7281.12900312.3
32-1004.512.50.552900562.3
32-100(i)6.312.51.12900542.0
32-1254.5200.752900452.3
32-125(i)6.3201.12900432.3
32-125a4.0160.552900432.3
32-1604.5321.12900442.3
32-160a4.5251.12900422.3
32-160(i)6.3322.22900422.3
32-2004.55032900452.3
32-200a4402.22900402.3
32-200(i)6.35042900332.0
40-1006.312.50.552900542.3
40-100a5.6100.372900522.3
40-1256.3201.12900462.3
40-125a5.6160.752900452.3
40-1606.3322.22900402.3
40-160a5.9281.52900392.3
40-160b5.2241.12900382.3
40-2006.35042900332.3
40-200a5.94432900312.3
40-200b5.5382.22900292.3
40-2506.3807.52900282.3
40-250a5.9705.52900282.3
40-250b5.56042900272.3
型号流量
(m3/h)
扬程
(m)
电机功率 (kw)转速
(r/min)
效率
(%)
汽蚀余量
(m)
40-100(i)12.512.51.12900622.3
40-125(i)12.5201.52900602.3
40-125(i)a11.217.21.12900582.3
40-160(i)12.53232900522.3
40-160(i)a11.7282.22900512.3
40-160(i)b10.522.51.52900502.3
40-200(i)12.5505.52900462.3
40-200(i)a11.74042900452.3
40-200(i)b10.53532900442.3
40-250(i)12.580112900382.3
40-250(i)a11.7707.52900382.3
40-250(i)b10.8607.52900372.3
50-10012.512.51.12900622.3
50-12512.5201.52900582.3
50-125a11.217.21.12900572.3
50-16012.53232900522.3
50-160a11.7282.22900512.3
50-160b10.522.51.52900502.3
50-20012.5505.52900462.3
50-200a11.744.542900452.3
50-200b10.53532900442.3
50-25012.580112900382.3
50-250a11.7707.52900382.3
50-250b10.8607.52900372.3
型号流量
(m3/h)
扬程
(m)
电机功率 (kw)转速
(r/min)
效率
(%)
汽蚀余量
(m)
50-100(i)2512.51.52900692.5
50-100(i)a22.4101.12900672.5
50-125(i)252032900682.5
50-125(i)a22.4162.22900662.5
50-160(i)253242900632.5
50-160(i)a23.42842900622.5
50-160(i)b21.62432900582.5
50-200(i)25507.52900582.5
50-200(i)a23.4447.52900572.5
50-200(i)b21.6375.52900552.5
50-250(i)2580152900502.5
50-250(i)a23.470112900502.5
50-250(i)b21.660112900492.5
50-315(i)25125302900402.5
50-315(i)a23.4110222900402.5
50-315(i)b21.69318.52900392.5
65-1002512.51.52900692.5
65-100a22.4101.12900672.5
65-125252032900682.5
65-125a22.4162.22900662.5
65-160253242900632.5
65-160a23.42842900622.5
65-160b21.62432900582.5
型号流量
(m3/h)
扬程
(m)
电机功率 (kw)转速
(r/min)
效率
(%)
汽蚀余量
(m)
65-20025507.52900582.5
65-200a23.4447.52900572.5
65-200b21.6375.52900552.5
65-2502580152900502.5
65-250a23.470112900502.5
65-250b21.660112900492.5
65-31525125302900402.5
65-315a23.4110222900402.5
65-315b21.69318.52900392.5
65-100(i)5012.532900733.0
65-100(i)a44.8102.22900723.0
65-125(i)50205.5290072.53.0
65-125(i)a44.81642900713.0
65-160(i)50327.52900713.0
65-160(i)a46.8287.52900703.0
65-160(i)b43.2245.52900693.0
65-200(i)5050152900673.0
65-200(i)a46.844112900663.0
65-200(i)b43377.52900653.0
65-250(i)5080222900593.0
65-250(i)a46.87018.52900593.0
65-250(i)b4360152900583.0
65-315(i)50125372900543.0
65-315(i)a45.8105302900543.0
65-315(i)b4393302900533.0
型号流量
(m3/h)
扬程
(m)
电机功率 (kw)转速
(r/min)
效率
(%)
汽蚀余量
(m)
80-1005012.532900733.0
80-100a44.8102.22900723.0
80-12550205.5290072.53.0
80-125a44.81642900713.0
80-16050327.52900713.0
80-160a46.8287.52900703.0
80-160b43.2245.52900693.0
80-2005050152900673.0
80-200a46.844112900663.0
80-200b43377.52900653.0
80-2505080222900593.0
80-250a46.87018.52900593.0
80-250b4360152900583.0
80-31550125372900543.0
80-315a45.8105302900543.0
80-315b4393302900533.0
80-315c4185222900513.0
80-35050150552900663.0
80-350a44142452900653.0
80-350b40135372900633.0
型号流量
(m3/h)
扬程
(m)
电机功率 (kw)转速
(r/min)
效率
(%)
汽蚀余量
(m)
80-100(i)10012.55.52900764.5
80-100(i)a891042900744.5
80-125(i)10020112900764.5
80-125(i)a89167.52900744.5
80-160(i)10032152900764.5
80-160(i)a93.528112900744.5
80-160(i)b86.424112900724.5
80-200(i)10050222900744.0
80-200(i)a93.54418.52900734.0
80-200(i)b86.437152900714.0
80-250(i)1008037290069>4.0
80-250(i)a93.570302900684.0
80-250(i)b86.460302900664.0
80-315(i)100125752900664.0
80-315(i)a93.5110552900664.0
80-315(i)b86.493452900654.0
80-315(i)c8285372900634.0
型号流量
(m3/h)
扬程
(m)
电机功率 (kw)转速
(r/min)
效率
(%)
汽蚀余量
(m)
100-10010012.55.52900764.5
100-100a891042900744.5
100-12510020112900764.5
100-125a89167.52900744.5
100-16010032152900764.5
100-160a93.528112900744.5
100-160b86.424112900724.5
100-20010050222900744.0
100-200a93.54418.52900734.0
100-200b86.437152900714.0
100-25010080372900694.0
100-250a93.570302900684.0
100-250b86.460302900664.0
100-315100125752900664.0
100-315a93.5110552900664.0
100-315b86.493452900654.0
100-100(i)16012.5112900734.5
100-125(i)16020152900744.5
100-125(i)a14316112900724.5
100-160(i)16032222900795.6
100-160(i)a1502818.52900765.0
100-200(i)16050372900795.2
100-200(i)a15045302900744.5
100-200(i)b13840222900724.5
100-250(i)16080552900774.8
100-250(i)a14070452900724.5
100-250(i)b10065372900704.5
型号流量
(m3/h)
扬程
(m)
电机功率 (kw)转速
(r/min)
效率
(%)
汽蚀余量
(m)
100-350100150902900574.0
100-350a87142752900754.0
100-350b82135552900754.0
125-10016012.5112900824.0
125-100a143107.52900774.0
125-12516020152900804.0
125-125a14316112900774.0
125-16020032302900784.0
125-160a18728222900764.0
125-160b18024.518.52900734.0
125-20020050452900775.5
125-200a18744372900765.5
125-200b17237302900755.5
125-25020080752900755.0
125-250a18770552900745.5
125-250b17260452900735.5
125-3152001251102900705.0
125-315a187110902900705.0
125-315b17293752900695.0
125-315c16078552900675.0
型号流量
(m3/h)
扬程
(m)
电机功率 (kw)转速
(r/min)
效率
(%)
汽蚀余量
(m)
150-12516020112900764.0
150-125a150167.52900774.0
150-16016032222900754.0
150-160a1502818.52900764.0
150-160b14024152900734.0
150-20016050372900775.5
150-200a15044302900765.5
150-200b14038222900755.5
150-25020080752900755.0
150-250a18770552900745.5
150-250b17260452900735.5
150-3152001251102900705.0
150-315a187110902900705.0
150-315b17293752900695.0

低转速

型号流量
(m3/h)
扬程
(m)
电机功率 (kw)转速
(r/min)
40-125(i)6.350.551450
40-160(i)6.380.551450
40-160(i)a5.560.551450
40-200(i)6.312.50.751450
40-200(i)a5.8110.551450
40-250(i)6.3201.51450
40-250(i)a5.8171.11450
50-1256.350.551450
50-1606.380.551450
50-160a5.560.551450
50-2006.312.50.751450
50-200a5.8110.551450
50-2506.3201.51450
50-250a5.8171.11450
50-125(i)12.550.551450
50-160(i)12.580.751450
50-160(i)a1160.551450
50-200(i)12.512.51.11450
50-200(i)a11.2100.751450
50-250(i)12.5202.21450
50-250(i)a11.717.51.51450
50-250(i)b10131.11450
50-315(i)12.53241450
50-315(i)a11.72831450
50-315(i)b102131450
型号流量
(m3/h)
扬程
(m)
电机功率 (kw)转速
(r/min)
65-12512.550.551450
65-16012.580.751450
65-160a1160.551450
65-20012.512.51.11450
65-200a11.2100.751450
65-25012.5202.21450
65-250a11.717.51.51450
65-250b10131.11450
65-31512.53241450
65-315a11.72831450
65-315b102131450
65-125(i)2550.751450
65-160(i)2581.51450
65-160(i)a2261.11450
65-200(i)2512.52.21450
65-200(i)a23.3111.51450
65-250(i)252031450
65-250(i)a22.215.82.21450
65-250(i)b2012.81.541450
65-315(i)25325.51450
65-315(i)a22.52641450
65-315(i)b202131450
型号流量
(m3/h)
扬程
(m)
电机功率 (kw)转速
(r/min)
80-125255,0.751450
80-1602581.51450
80-160a2261.11450
80-2002512.52.21450
80-200a23.3111.51450
80-250252031450
80-250a22.215.82.21450
80-250b2012.81.51450
80-31525325.51450
80-315a22.52641450
80-315b202131450
80-125(i)5051.51450
80-160(i)5082.21450
80-160(i)a44.761.51450
80-160(i)b43.25.81.51450
80-200(i)5012.541450
80-200(i)a44.71031450
80-250(i)50205.51450
80-250(i)a461741450
80-250(i)b40.51331450
80-315(i)5032111450
80-315(i)a4627.97.51450
80-315(i)b40.5215.51450
型号流量
(m3/h)
扬程
(m)
电机功率 (kw)转速
(r/min)
100-1255051.51450
100-1605082.21450
100-160a4661.51450
100-2005012.541450
100-200a44.71031450
100-25050205.51450
100-250a461741450
100-250b40.51331450
100-3155032111450
100-315a4627.97.51450
100-315b40.5215.51450
100-125(i)8052.21450
100-160(i)80831450
100-160(i)a726.52.21450
100-200(i)8012.55.51450
100-200(i)a721041450
100-250(i)8020111450
100-250(i)a7517.57.51450
100-250(i)b69155.51450
100-315(i)8032151450
100-315(i)a7527.5111450
100-315(i)b7024111450
100-400(i)8050221450
100-400(i)a754418.51450
100-400(i)b7038151450
型号流量
(m3/h)
扬程
(m)
电机功率 (kw)转速
(r/min)
125-12510052.21450
125-160100841450
125-160a87641450
125-20010012.57.51450
125-200a89105.51450
125-250100220111450
125-250a93.517.57.51450
125-250b87157.51450
125-31510032151450
125-315a9127111450
125-315b8724111450
125-40010050301450
125-400a9444221450
125-400b8737.518.51450
125-200(i)16012.5111450
125-200(i)a143107.51450
125-250(i)16020151450
125-250(i)a14717111450
125-250(i)b134147.51450
125-315(i)16032221450
125-315(i)a1502818.51450
125-315(i)b13824151450
125-400(i)16050371450
125-400(i)a15044301450
125-400(i)b13838301450
型号流量
(m3/h)
扬程
(m)
电机功率 (kw)转速
(r/min)
150-20016012.5111450
150-200a143107.51450
150-25016020151450
150-250a14717111450
150-250b134147.51450
150-31516032221450
150-315a1502818.51450
150-315b13824151450
150-40016050371450
150-400a15044301450
150-400b13838301450
150-200(i)20012.5151450
150-200(i)a17910111450
150-250(i)2002018.51450
150-250(i)a18717.5151450
150-250(i)b17314111450
150-315(i)20032301450
150-315(i)a18728221450
150-315(i)b1732418.51450
150-400(i)20050451450
150-400(i)a18744371450
150-400(i)b17337.5301450
型号流量
(m3/h)
扬程
(m)
电机功率 (kw)转速
(r/min)
200-20020012.5151450
200-200a17910111450
200-2502002018.51450
200-250a18717.5151450
200-250b17314111450
200-31520032301450
200-315a18728221450
200-315b1732418.51450
200-40020050451450
200-400a18744371450
200-400b17337.5301450
200-200(i)40012.5221450
200-200(i)a3581018.51450
200-250(i)40020301450
200-250(i)a35816221450
200-250(i)b3221318.51450
200-315(i)40032551450
200-315(i)a37428451450
200-315(i)b34624371450
200-400(i)40050901450
200-400(i)a37444751450
200-400(i)b34738551450
200-400(i)c32032451450
型号流量
(m3/h)
扬程
(m)
电机功率 (kw)转速
(r/min)
250-25055020451450
250-250a49016371450
250-31555032751450
250-315a51528551450
250-315b47624451450
250-400550501101450
250-400a51544901450
250-400b47637.5751450
300-400720501321450
300-400a662441101450
300-400b60938901450
300-400c56133751450
300-460720652001450
300-460a662551601450
300-460b609451101450
300-460c56138901450
300-510720802501450
300-510a66270.52001450
300-510b609621601450
300-510c56154.51321450
300-2357201855970
型号流量
(m3/h)
扬程
(m)
电机功率 (kw)转速
(r/min)
300-235a6571545970
300-3007202875970
300-300a6662475970
300-300b6232155970
300-38072044132970
300-380a66638110970
300-380b6233390970
350-2508002075970
350-250a7151655970
350-3158003290970
350-315a7482875970
350-315b6922475970
350-40080050160970
350-400a75044132970
350-400b69738110970
400-400108012.555970
400-400a9661045970
400-50010802090970
400-500a9661775970
400-500b9351555970
400-625108032132970
400-625a99627110970
400-625b9352490970
500-400120012.575970
500-400a10731055970
500-500120020110970
500-500a11061790970
500-500b10401575970
500-625120032160970
500-625a110627132970
500-625b104024110970

ihg型立式不锈钢离心泵

ihg立式不锈钢离心化工泵特点
运行平稳:泵轴的同心度及叶轮优异的动静平衡,保证平稳运行,*振动。
滴水不漏:不同材质的硬质合金密封,保证了不同介质输送均无泄漏。
噪音低:两个低噪音轴承支撑下的水泵,运转平稳,除电机微弱声响,基本无噪音。


留言框

  • 产品:

  • 您的单位:

  • 您的姓名:

  • 联系电话:

  • 常用邮箱:

  • 省份:

  • 详细地址:

  • 补充说明:

  • 验证码:

    请输入计算结果(填写阿拉伯数字),如:三加四=7
contact us
  • 联系qq:1597533116
  • 联系邮箱:equanby@163.com
  • 传真:86-21-59266228
  • 联系地址:上海市青浦区金泽工业园区

扫一扫  微信咨询

©2024 上海鄂泉泵业有限公司 尊龙凯时人生就博官网登录的版权所有  备案号:  googlesitemap    总访问量:660482

产品推荐区:yw型液下排污泵不锈钢潜水排污泵isg立式管道离心泵




网站地图
